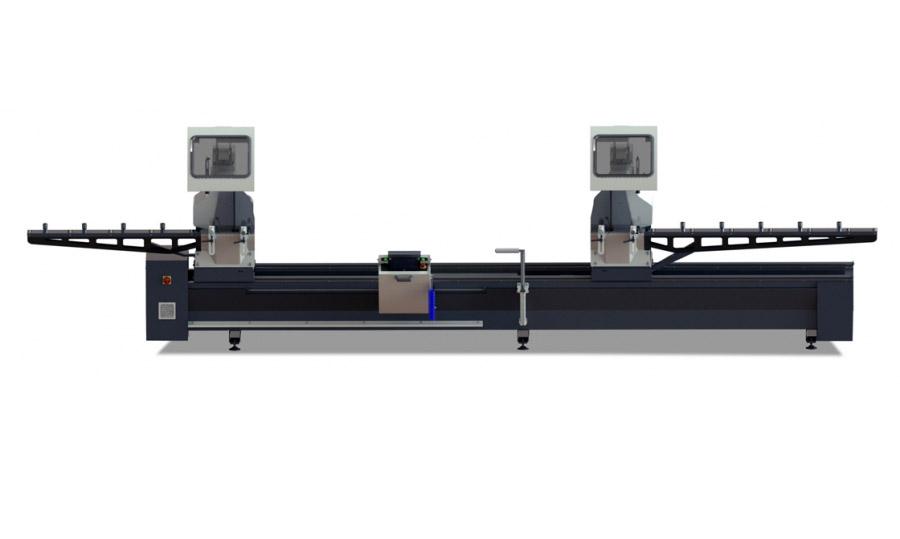

AZ-UL550 Automatic cutting-off machine with double head / blades Ø 550 mm.

GENERAL FEATURES:

Used for cutting processes of aluminium and plastic profiles.

•  Hydro-pneumatic move, full automatic running system.
•  Secure protective saw shield.
•  The feature of automatic movement and cutting of the heads to outwards at 90º - 45º and inwards  at 45º - 90º and all other various angles in between.
•  With PLC, serial process and delicate measurement.
•  Process programming and large memory feature.
•  The feature of calculating the profile mould height.
•  Profile slicing feature.
•  The feature of cutting profiles above 3.400 mm. to 8.000 mm. length with the help of the conveyor on it.

STANDARD EQUIPMENT:

•
  550 mm. saw blade (2 pieces)
•
  Service keys
•
  Conveyor
•
  Cooling system

OPTIONAL EQUIPMENT:

• Barcode device

TECHNICAL FEATURES :

• Dimensions : 6.500 x 1.250 x 1.690 mm. (with packing)
• Weight : 1.650 Kg. (with packing)
